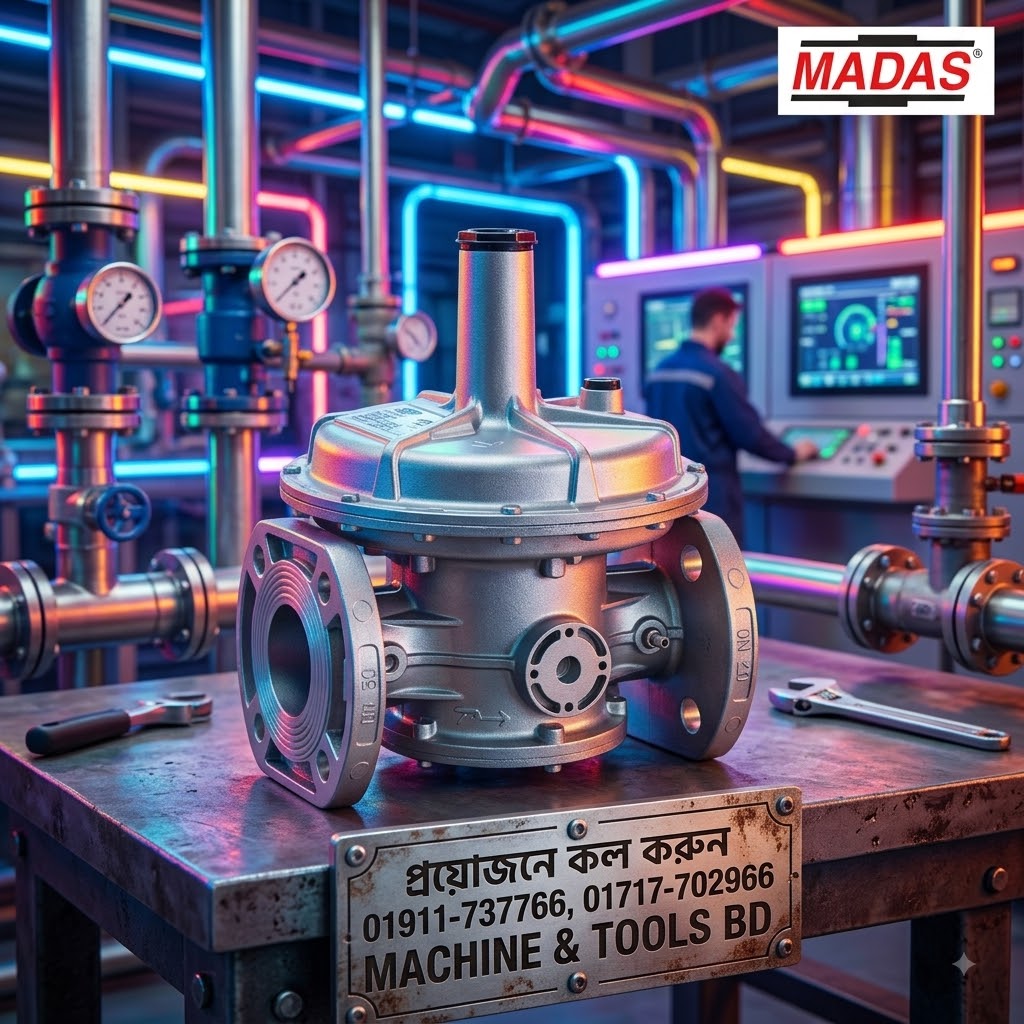

MADAS RG/2MBZ Gas Regulators
Roll over image to zoom in
৳ 190,000.00
Model: RG/2MBZ80.
Type: Industrial.
Connection Size: 3″ PN16.
Max inlet pressure: 0.5 to 5 bar.
Outlet pressure: 13-22 mbar
- Outlet over pressure shut off device (only Madas RG/2MBZ): it stops the gas flow when the regulator outlet pressure goes up the device setting value
- Relief valve: it vents outside small quantity of gas in case there are downstream regulator over-pressure.That exhaust it is convoyed outside in case of installation in environment with bad ventilation
- Outlet low pressure shut off device (only Madas RG/2MBZ): it stops the gas flow when the regulator outlet pressure goes down the device setting value. It closes even if there is no inlet pressure.
- Outlet pressure test point.
- 30mm to 50mm Flanged PN16 option
- In conformity with the 2009/142/EC Directive (Gas Directive)
- In conformity with EN 88.2 – EN 334
- In conformity with the 97/23/EC Directive (PED Directive)
- In conformity with the 94/9/EC Directive (ATEX Directive)
Model: RG/2MBZ80.
Type: Industrial.
Connection Size: 3″ PN16.
Max inlet pressure: 0.5 to 5 bar.
Outlet pressure: 13-22 mbar
- Outlet over pressure shut off device (only Madas RG/2MBZ): it stops the gas flow when the regulator outlet pressure goes up the device setting value
- Relief valve: it vents outside small quantity of gas in case there are downstream regulator over-pressure.That exhaust it is convoyed outside in case of installation in environment with bad ventilation
- Outlet low pressure shut off device (only Madas RG/2MBZ): it stops the gas flow when the regulator outlet pressure goes down the device setting value. It closes even if there is no inlet pressure.
- Outlet pressure test point.
- 30mm to 50mm Flanged PN16 option
- In conformity with the 2009/142/EC Directive (Gas Directive)
- In conformity with EN 88.2 – EN 334
- In conformity with the 97/23/EC Directive (PED Directive)
- In conformity with the 94/9/EC Directive (ATEX Directive)
