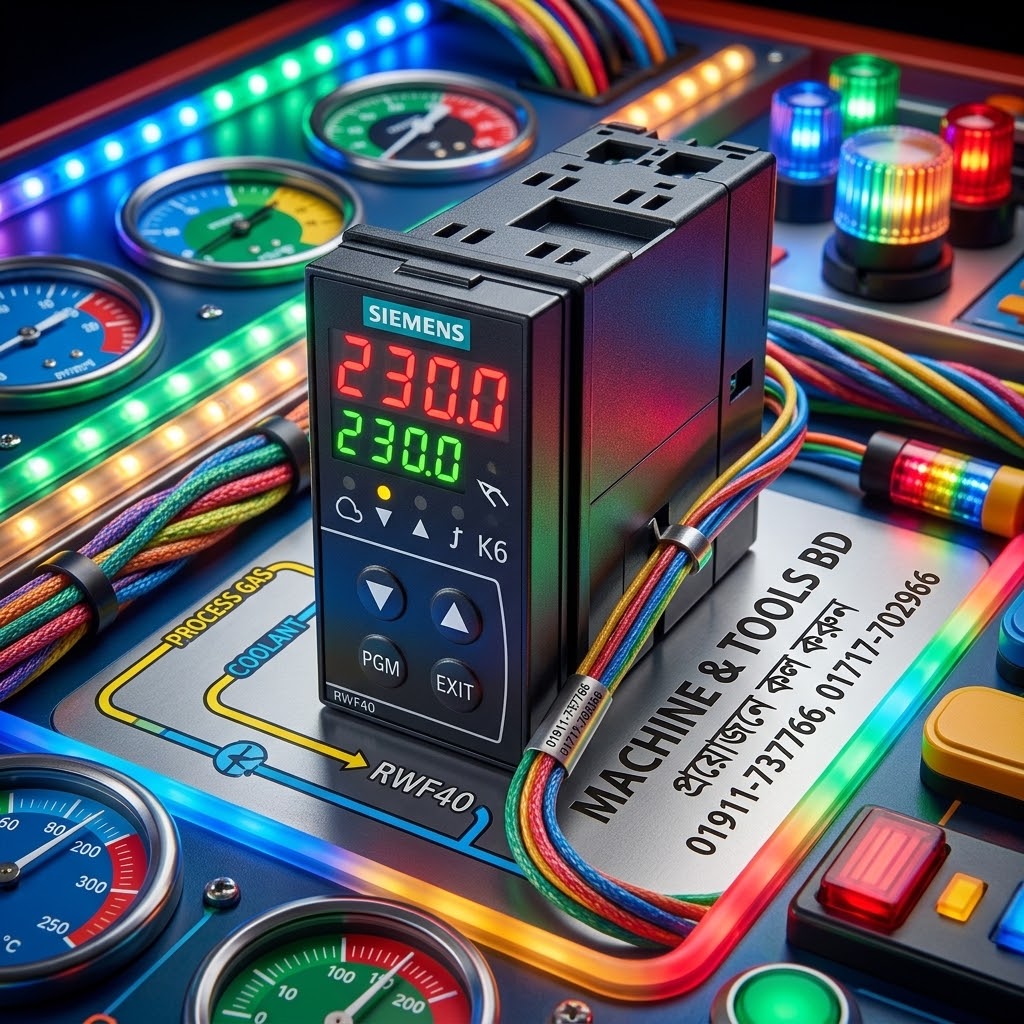

Siemens RWF40 Single Loop Temp/Pressure Control
৳ 155,000.00
- Model: RWF40.011A97
- Three analog and two binary inputs.
- "Auto Tune" PID output control.
- Optional MOD BUS interface.
- Dual set point and set point limits.
- Three-level access/locking feature.
- Auto/Manual control feature.
LEDs on the front indicate the following operating states:
- Control ON / OFF
- Positioning pulses ON or OFF for driving the burner ́s air damper when using
modulating burner control, or stage I / stage II when using 2-stage burner control
- «2-stage» operating mode
- Position of the configurable contact «K6»
- Manual control ON / OFF
During operation, the digital display above the LEDs shows the set point (green), the
actual value (red) and – when making parameter settings – the relevant parameters.
- Model: RWF40.011A97
- Three analog and two binary inputs.
- “Auto Tune” PID output control.
- Optional MOD BUS interface.
- Dual set point and set point limits.
- Three-level access/locking feature.
- Auto/Manual control feature.
LEDs on the front indicate the following operating states:
– Control ON / OFF
– Positioning pulses ON or OFF for driving the burner ́s air damper when using
modulating burner control, or stage I / stage II when using 2-stage burner control
– «2-stage» operating mode
– Position of the configurable contact «K6»
– Manual control ON / OFF
During operation, the digital display above the LEDs shows the set point (green), the
actual value (red) and – when making parameter settings – the relevant parameters.
