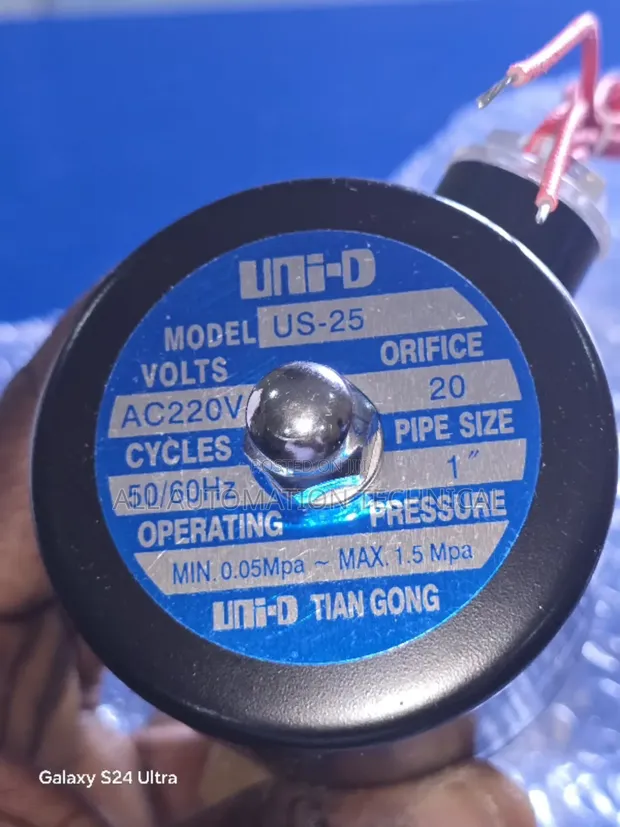

UNI-D Solenoid Valve 1″
Roll over image to zoom in
৳ 1,800.00
Model: UW-25
Made: UNI-D
Working medium : air,water,oil,gas
Motion Pattern : Direct Drive Type
Type : Normal Close Type / Normal Open Type
Joint Pipe Bore : 1″
Operation Fluid Viscosity : below 20 CST
Motion Pattern : Direct Drive Type
Type : Normal Close Type / Normal Open Type
Joint Pipe Bore : 1″
Operation Fluid Viscosity : below 20 CST
Working Pressure : Water/Oil :0~5 kgf/cm2 , Air /Gas:0~7 kgf/cm2
Max.Pressure Resistance : 10.5 kgf/cm2
Operating Temperature Range : -5~100℃
Voltage: AC220V
Voltage Range : 10%
Material of Body : Brass
Material of Oil Seal : NBR , EPDM , VITON
Model: UW-25
Made: UNI-D
Working medium : air,water,oil,gas
Motion Pattern : Direct Drive Type
Type : Normal Close Type / Normal Open Type
Joint Pipe Bore : 1″
Operation Fluid Viscosity : below 20 CST
Motion Pattern : Direct Drive Type
Type : Normal Close Type / Normal Open Type
Joint Pipe Bore : 1″
Operation Fluid Viscosity : below 20 CST
Working Pressure : Water/Oil :0~5 kgf/cm2 , Air /Gas:0~7 kgf/cm2
Max.Pressure Resistance : 10.5 kgf/cm2
Operating Temperature Range : -5~100℃
Voltage: AC220V
Voltage Range : 10%
Material of Body : Brass
Material of Oil Seal : NBR , EPDM , VITON
