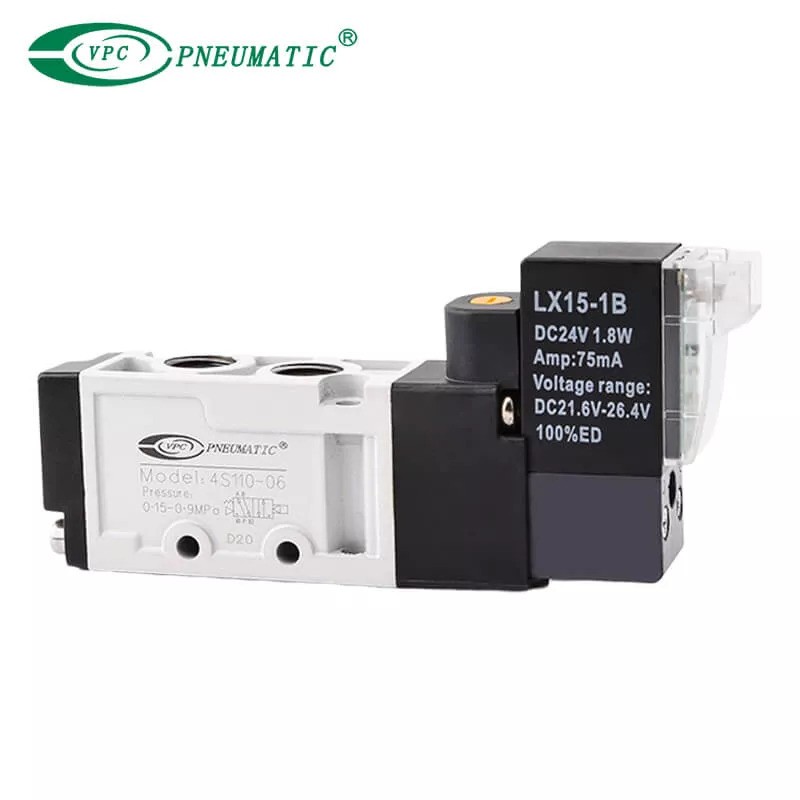

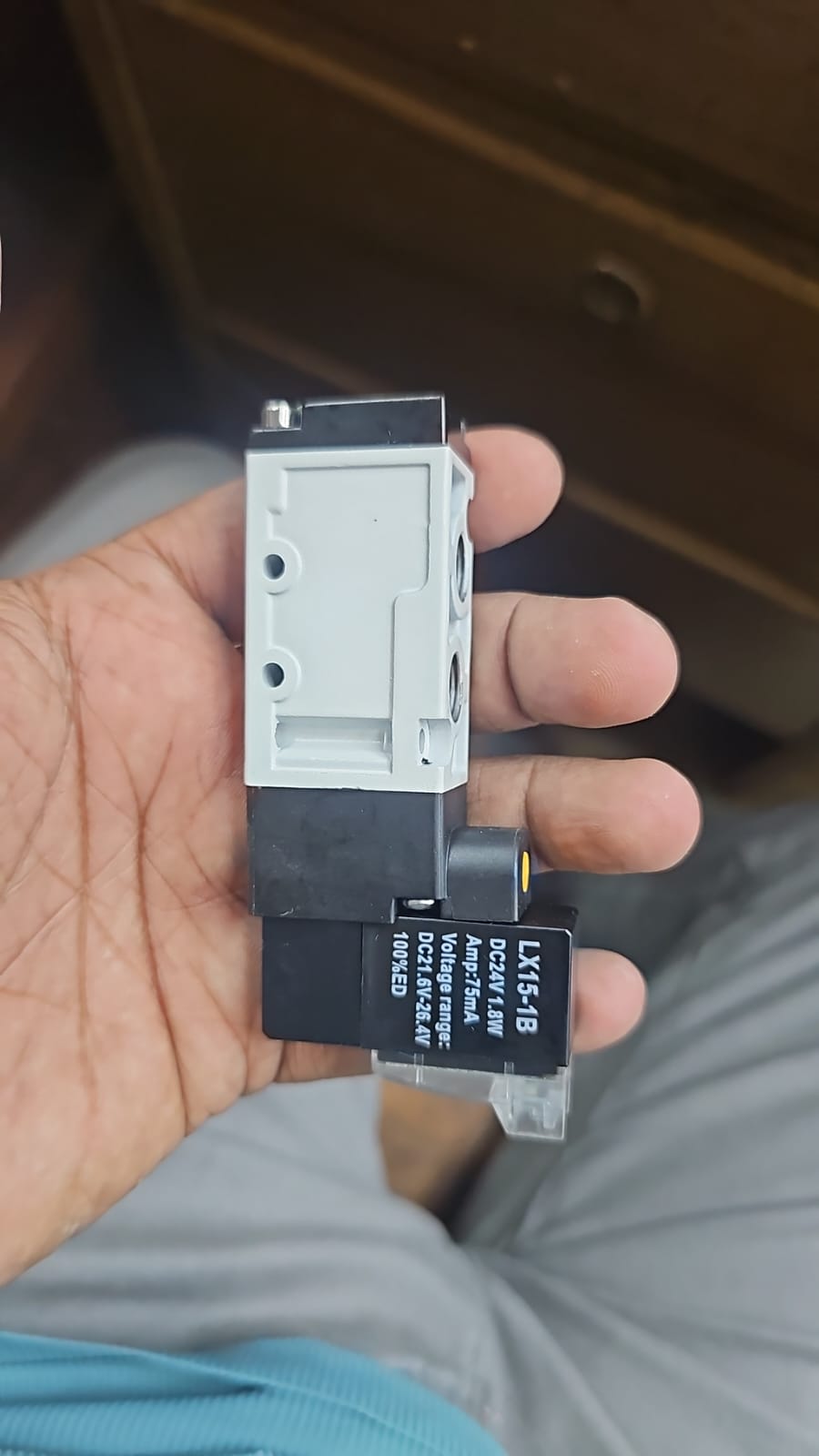

5V110-06 Pneumatic Directional Solenoid Valve VPC
Roll over image to zoom in
৳ 2,200.00৳ 2,500.00 (-12%)
| Model | 5V110 | ||||
| Working medium | Air | ||||
| Acting type | Internal guide | ||||
| Port size | G1/8" | ||||
| Valve type | 2Position 5 port | ||||
| CV value | 0.78 | ||||
| Max acting frequency(Hz) | 12 | ||||
| Response time(ms/0.5Mpa) | 15 | ||||
| Working pressure | 0.15 to 0.7Mpa | ||||
| Working temperature | -10 to 60ºC | ||||
| Voltage range | AC:±15% DC:±10% | ||||
| Protective Class | IP65(DIN40050) | ||||
| Heat resistant grade | B | ||||
| Model | 5V110 | ||||
| Working medium | Air | ||||
| Acting type | Internal guide | ||||
| Port size | G1/8″ | ||||
| Valve type | 2Position 5 port | ||||
| CV value | 0.78 | ||||
| Max acting frequency(Hz) | 12 | ||||
| Response time(ms/0.5Mpa) | 15 | ||||
| Working pressure | 0.15 to 0.7Mpa | ||||
| Working temperature | -10 to 60ºC | ||||
| Voltage range | AC:±15% DC:±10% | ||||
| Protective Class | IP65(DIN40050) | ||||
| Heat resistant grade | B | ||||
