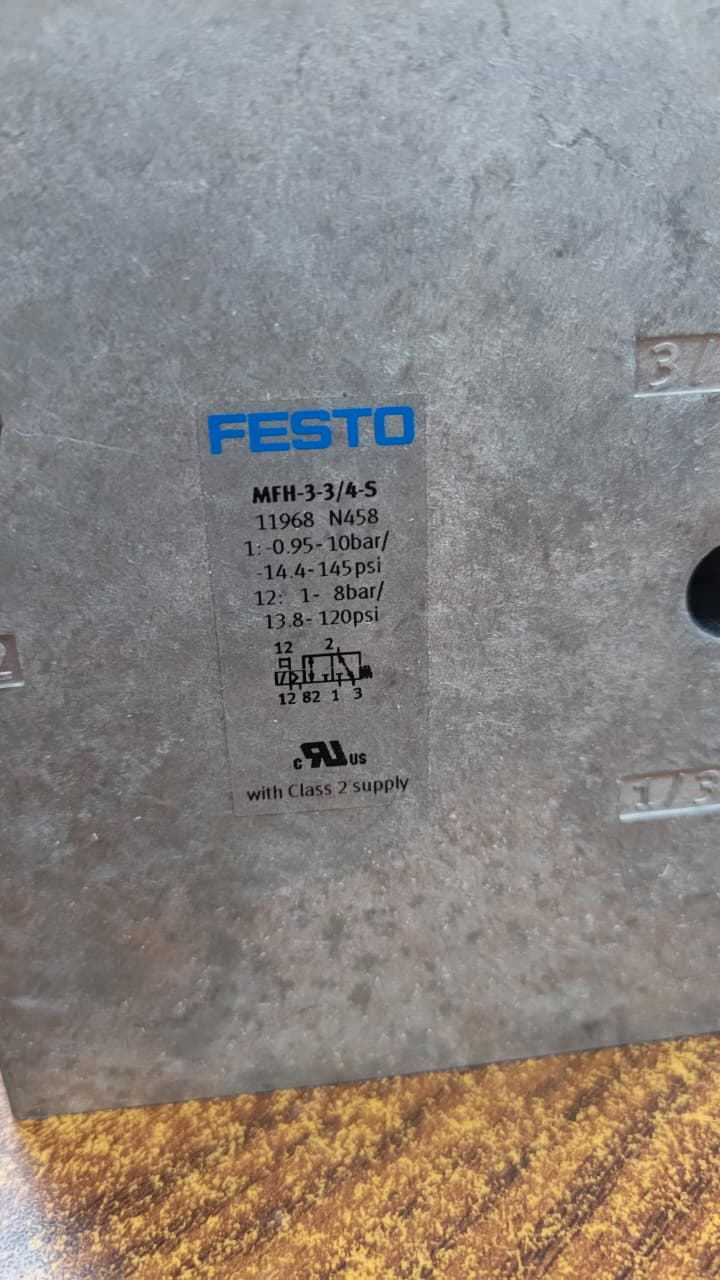

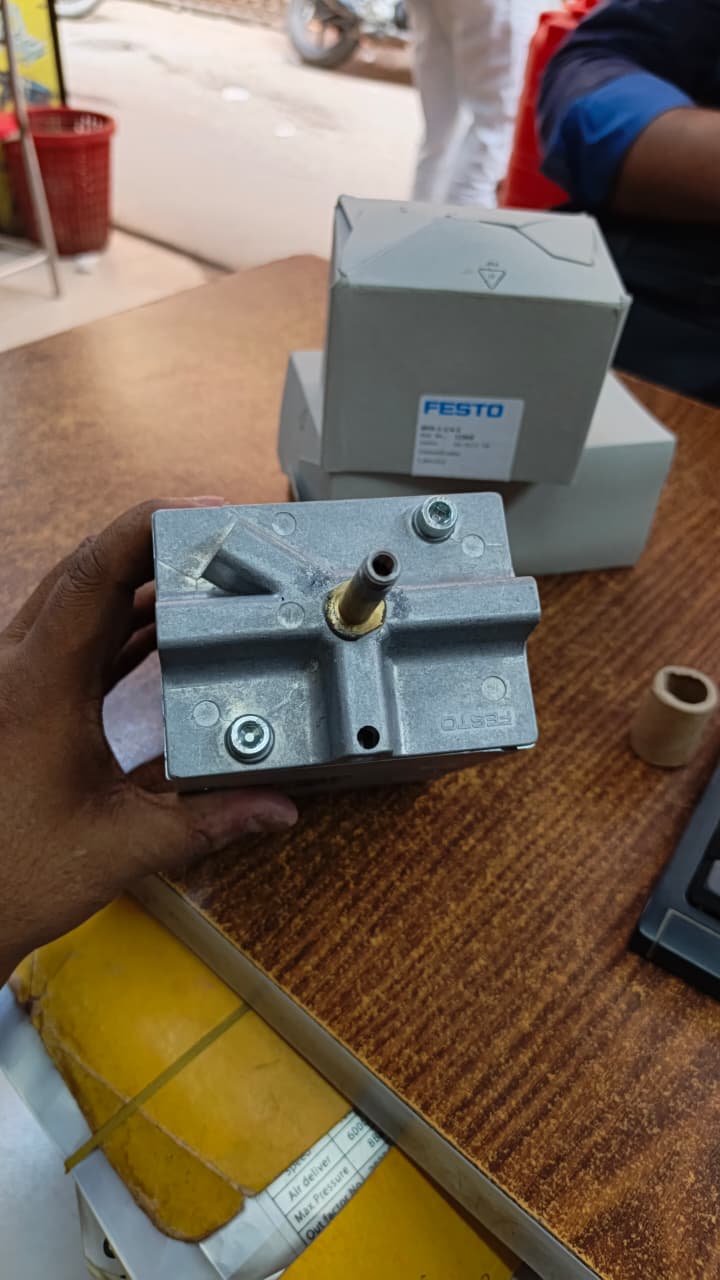

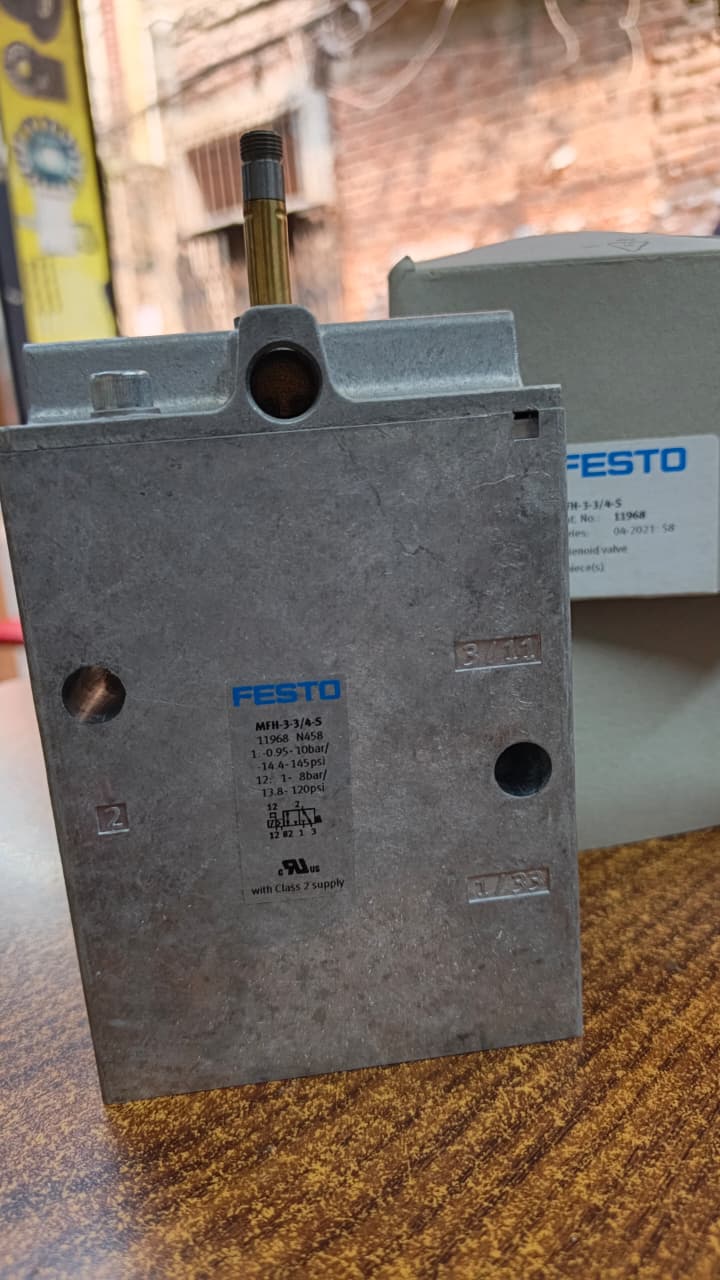

Festo Pneumatic Solenoid Valve MFH-3-3/4-S
Roll over image to zoom in
৳ 35,000.00৳ 40,000.00 (-13%)
Key Technical Specifications
- Manufacturer / Brand: Festo
- Part / Material Number: 11968 (Model:
MFH-3-3/4-S) - Valve Function: 3/2-way, closed, monostable (normally closed, spring return)
- Actuation Type: Electrical (solenoid coil and socket sold separately)

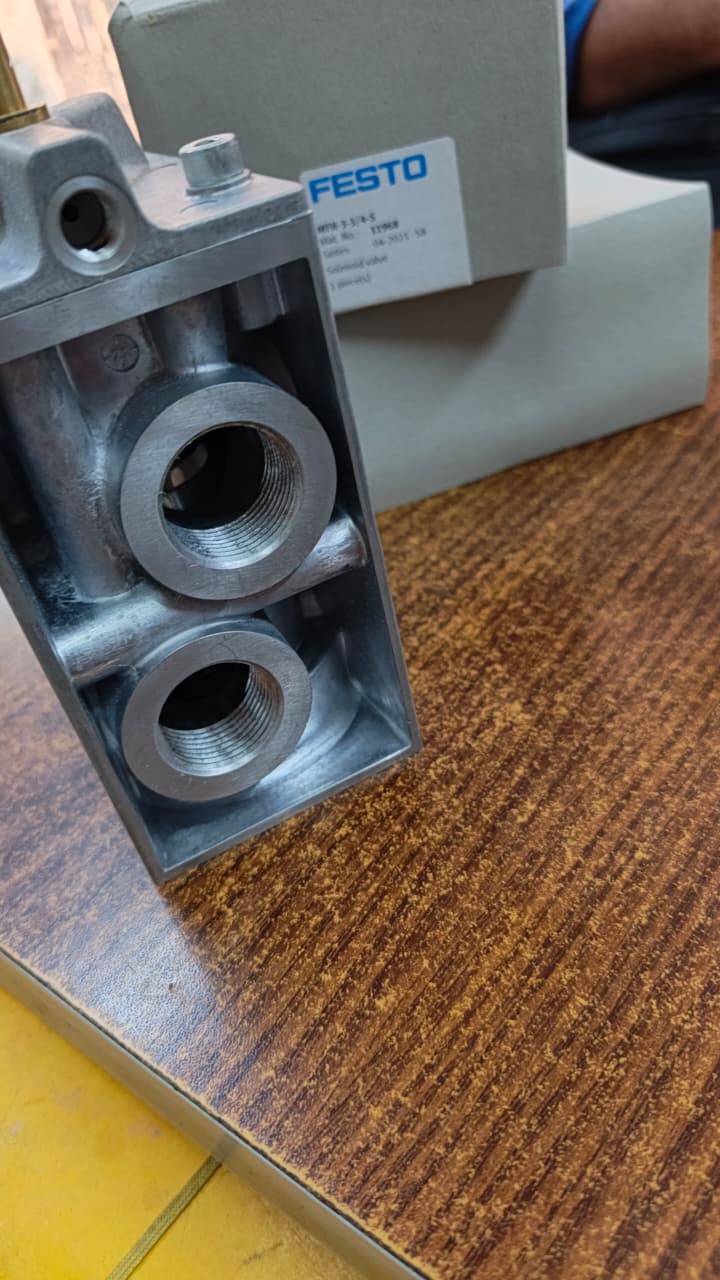

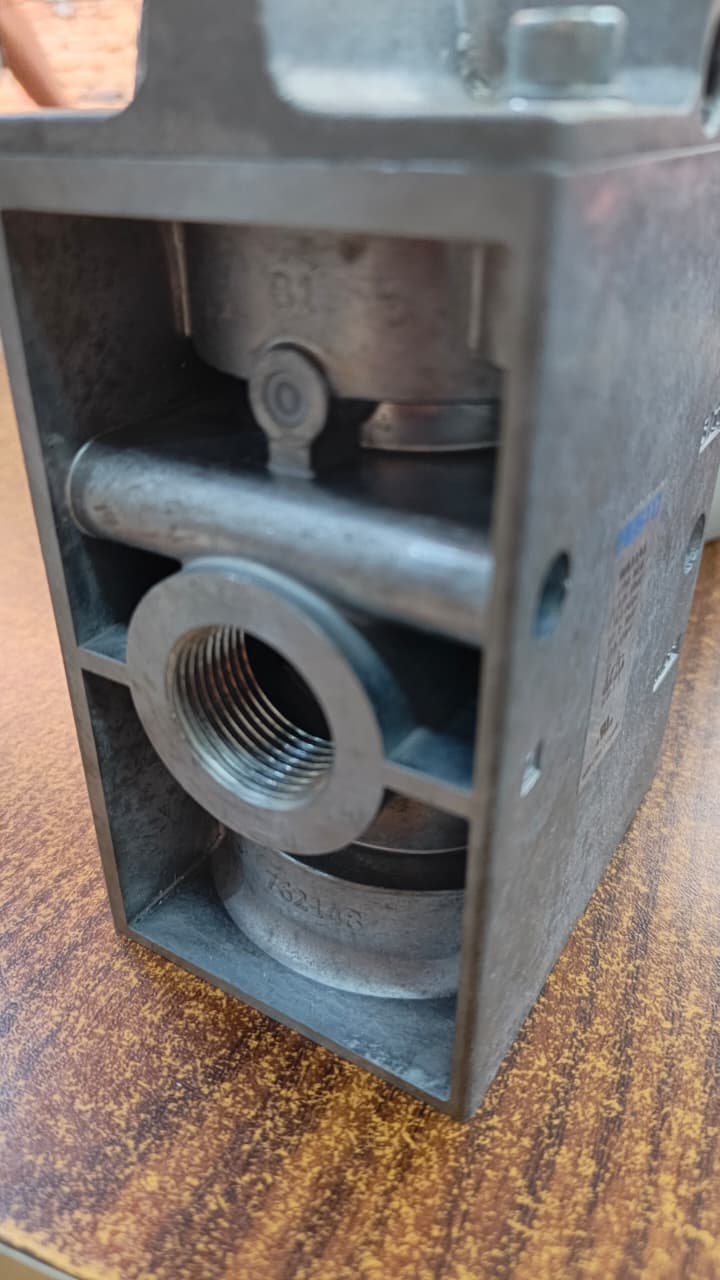

- Pneumatic Port Size: G3/4 (Thread standard G)
- Nominal Flow Rate: 7,500 l/min
- Operating Pressure: -0.95 bar to 10 bar (-0.095 MPa to 1 MPa)
- Design Structure: Poppet seat with soft sealing principle (Nitrile Rubber / NBR)
- Body Material: Die-cast aluminum / Aluminium
- Protection Class: IP65
- Width: 68 mm
Key Technical Specifications
- Manufacturer / Brand: Festo
- Part / Material Number: 11968 (Model:
MFH-3-3/4-S) - Valve Function: 3/2-way, closed, monostable (normally closed, spring return)
- Actuation Type: Electrical (solenoid coil and socket sold separately)
- Pneumatic Port Size: G3/4 (Thread standard G)
- Nominal Flow Rate: 7,500 l/min
- Operating Pressure: -0.95 bar to 10 bar (-0.095 MPa to 1 MPa)
- Design Structure: Poppet seat with soft sealing principle (Nitrile Rubber / NBR)
- Body Material: Die-cast aluminum / Aluminium
- Protection Class: IP65
- Width: 68 mm
